Serial Number Finder

How To Locate Your CINCINNATI Serial Number

When you contact us for service, support, or parts, you will need to have your CINCINNATI serial number available so we can better assist you. If you do not know how to find your serial number, the below outline may help you.

If you are having additional difficulties, please contact us:

☎   (513) 367-7100          ✉  Email Us


Lasers

Laser Serial Number Location


Mechanical & Hydraulic Press Brakes

The serial number is stamped in one of two places. It will either be on the stainless steel capacity plate pinned to the ram in the general area of the pushbutton control, or front vertical face of the bed near dovetail slot on the right hand side. The right hand side is determined when the operator stands facing the front of the machine.

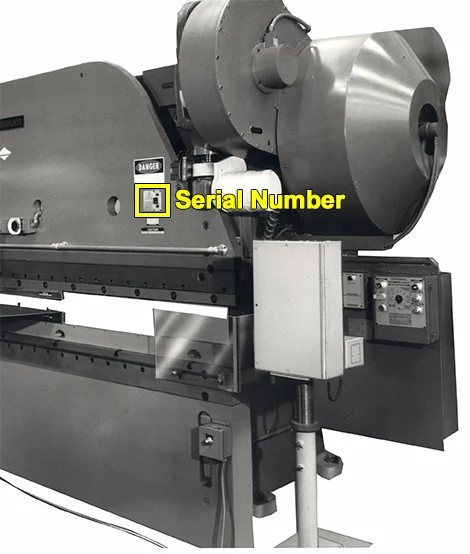

Mechanical Press Brake Serial Number Location

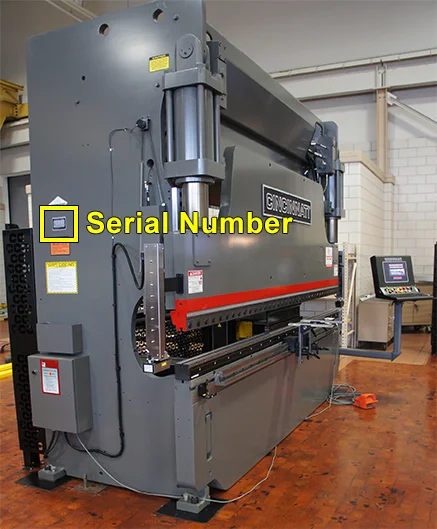

Hydraulic Press Brake Serial Number Location


Mechanical & Hydraulic Shears

The serial number is stamped on the stainless steel capacity plate pinned to the holddown beam, or on the uncovered area of the right hand, upper knife seat. The right hand side of the machine is determined when the operator faces the front of the machine.

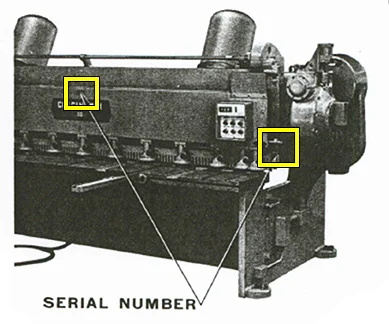

Mechanical & Hydraulic Shear Serial Number Location

Mechanical & Hydraulic Shear Serial Number Location


Shapers

The serial number is found either stamped on the machined pad of the tool slide, or on the main ramway column on the operator's side of the machine. (On old shapers with square ramways, it will be necessary to remove the right hand ram clamp front he column to determine this serial number.)

Shaper Serial Number Location

Shaper Serial Number Location


Compacting & Restrike Presses

The serial number is found either stamped on the legend plate attached to the air and electric control panel, or on the right hand lower corner of the bed.

Refer to Standards page M-7.

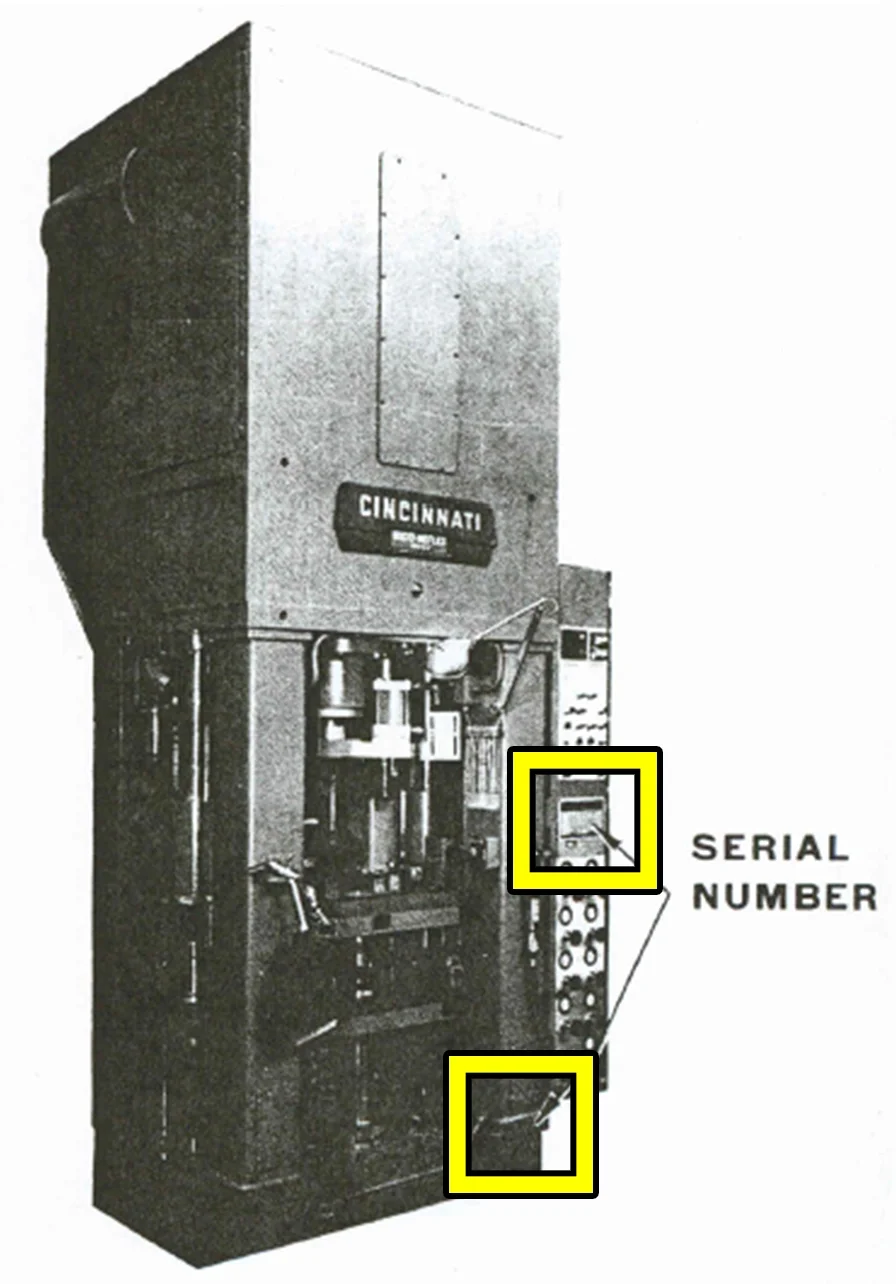

Compacting & Restrike Press Serial Number Location

Compacting & Restrike Press Serial Number Location



Sheet Slitters

The serial number is stamped on the right hand corner of the ram.

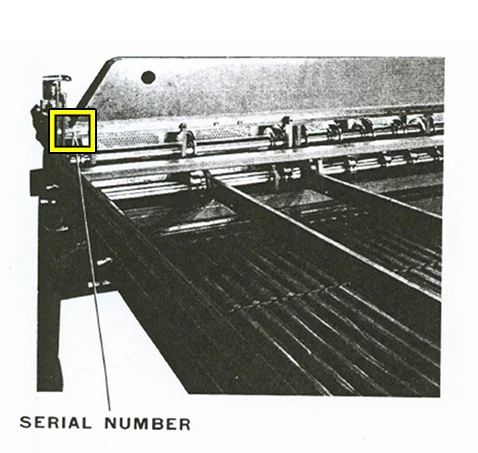

Sheet Slitter Serial Number Location

Sheet Slitter Serial Number Location


Rigid Presses

The serial number is stamped either on the capacity plate, pinned to the main housing, or it is stamped on the lower bolster plate on the lower right hand corner.

Rigid Press Serial Number Location

Rigid Press Serial Number Location


Electroshapes

The serial number is stamped in one of two places. On the 50KJ model, it is stamped on the right hand lower corner of the table, or on the rear of the console. On the 150KJ model, it is stamped on the right hand rear of the table or on the capacity plate pinned to the main control box door.

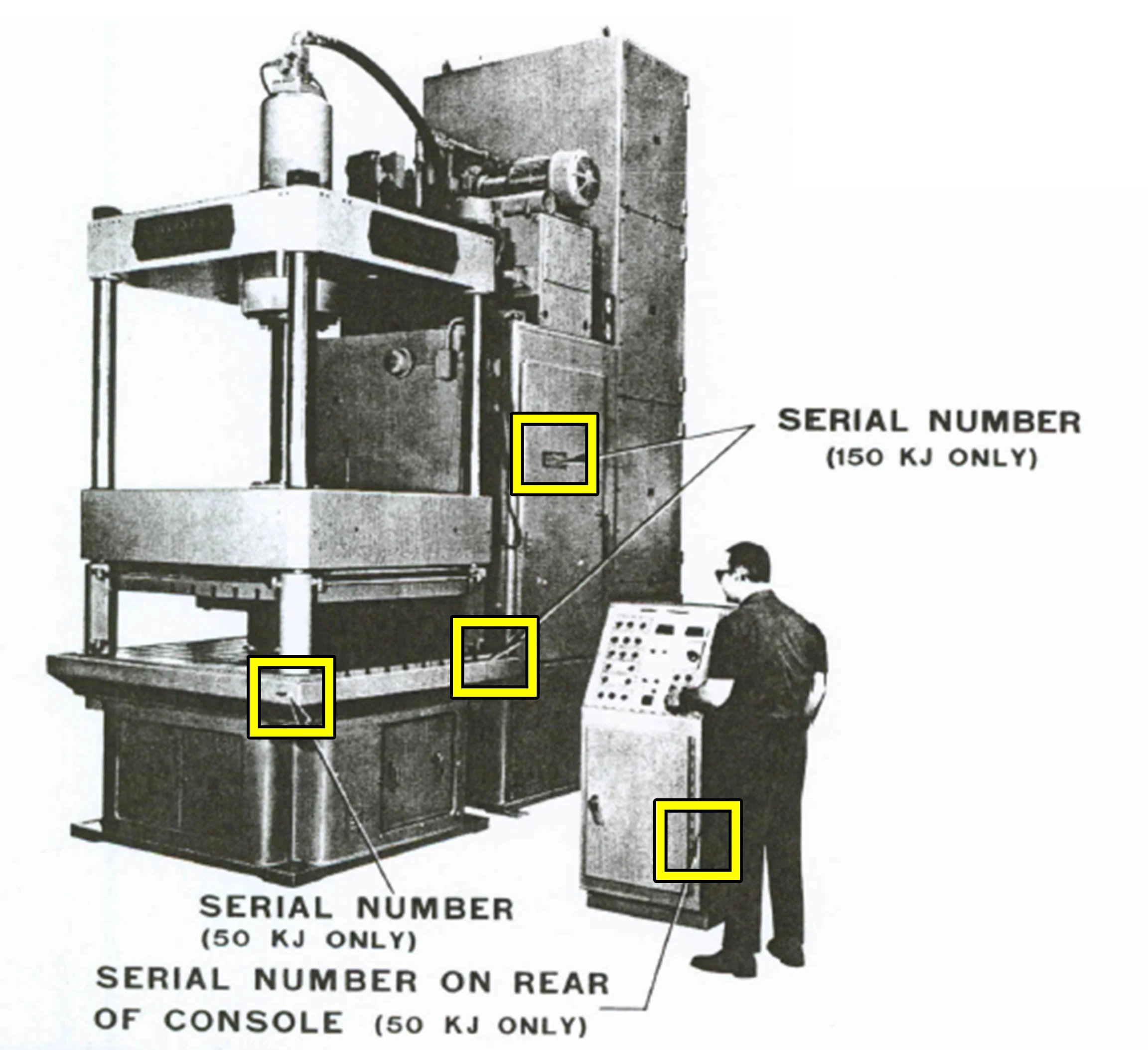

Electroshape Serial Number Location

Electroshape Serial Number Location


Waveguard

The serial number is pasted inside the 24" square control box, used to retrofit these units to the press brake.

OBS CNC Press Center

The serial number is located on the machine's capacity plate an on the right edge of the bed.

Conveyors

The serial number is located on the JIC electrical legend plate mounted on the control enclosure.
