Goform Electric Press Brake

Made in the USA
Goform Electric Press Brake

Ram Repeatability+/- 0.0002" Ram Repeatability

power systemElectrically Powered

press brake controlTouchscreen HMI Control

backgages6-Axis Backgage






Goform electric press brake Overview

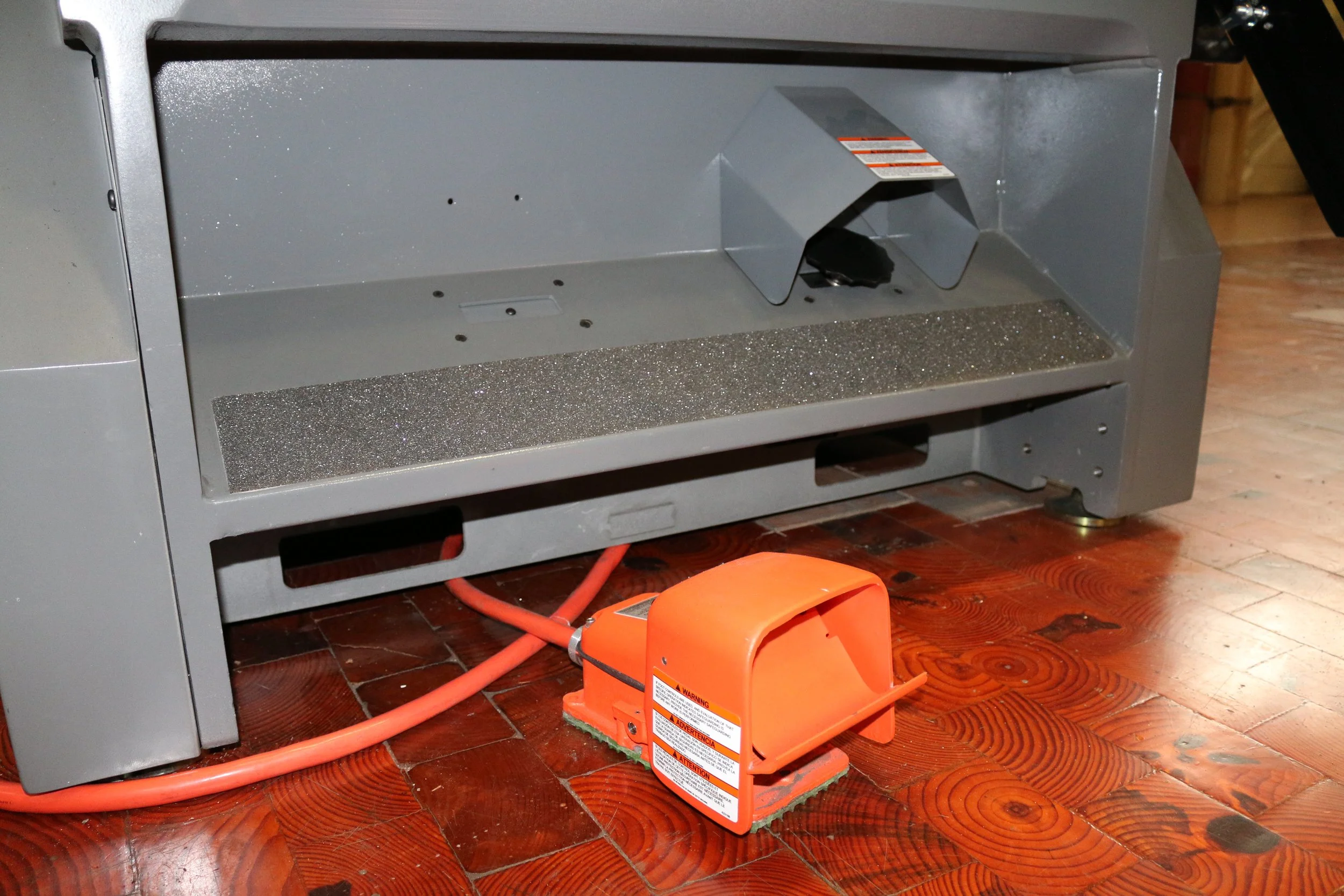

The Goform is the perfect solution for small parts, up to ¼” thick and less than 50 pounds. This machine can be easily moved with a fork truck or overhead crane and put into production without being anchored to the floor. The work height is adjustable so operators will be comfortable sitting or standing. With the Goform, you can adapt to changing plant layouts and work flows.


Goform Electric Press Brake

Key Benefits

Portability
The Goform is the perfect solution for small parts - up to ¼” thick and less than 50 pounds. This machine can be easily moved with a fork truck or overhead crane and put into production without being anchored to the floor. The work height is adjustable; operators will be comfortable sitting or standing. With the Goform, you can adapt to changing plant layouts and work flows.

Durability
This 40 ton press brake is ready for long hours and multi-shift operation. The heavy-duty, stress-relieved frame was designed for full tonnage with minimal deflection.  The drive system utilizes satellite roller screws that distribute load over a greater contact area than ball screws, reducing heat and wear and providing long life.

Fast Setup

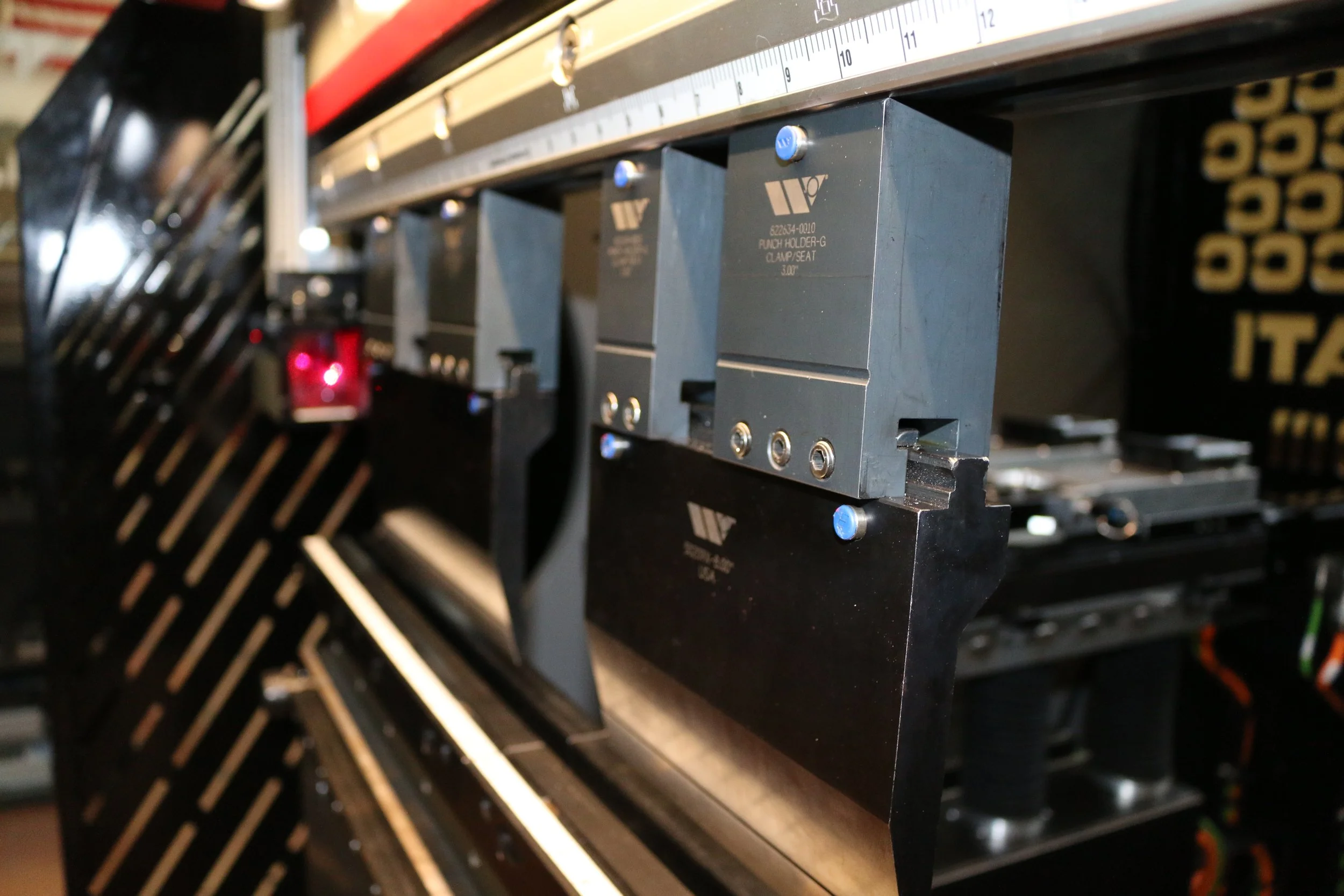

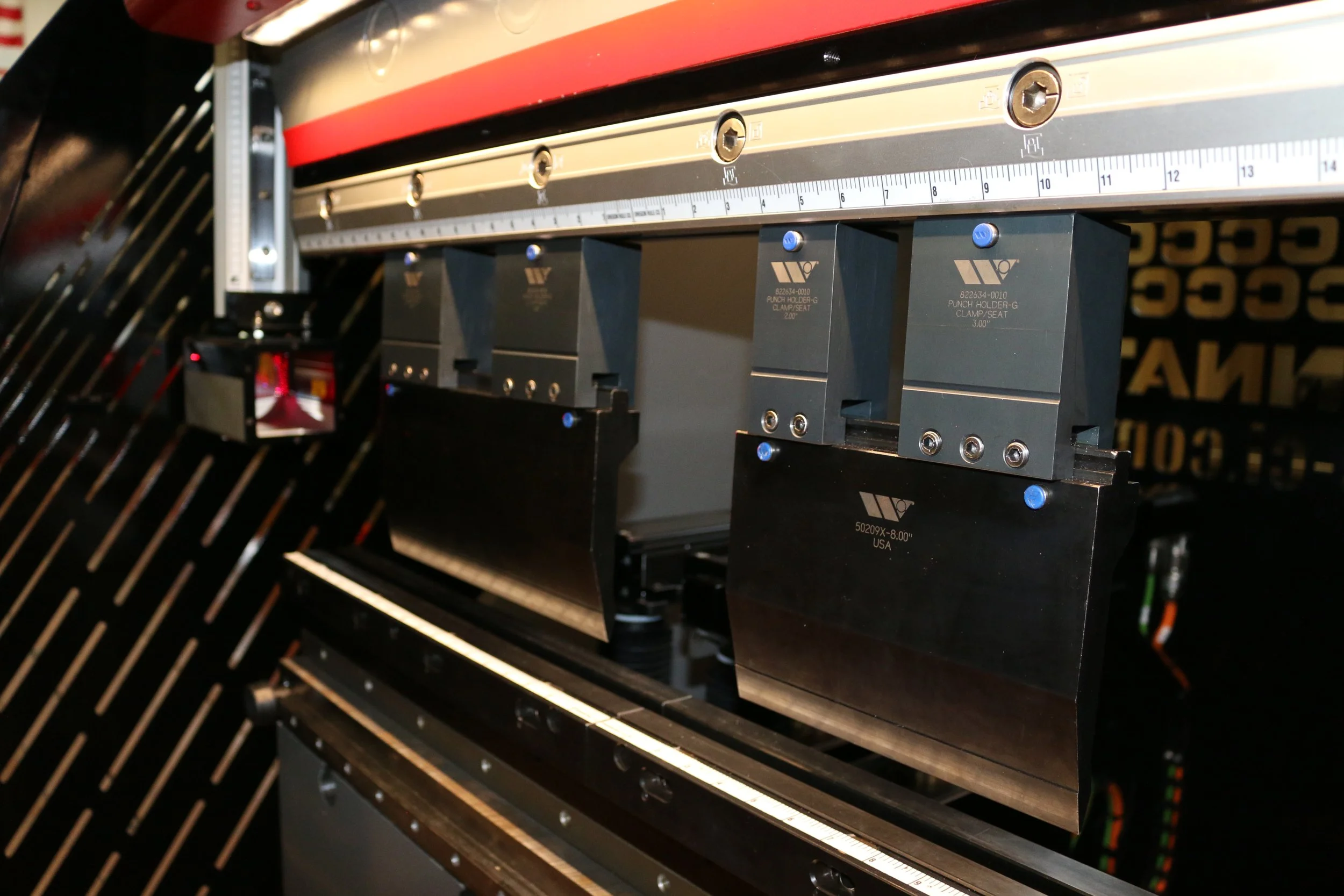

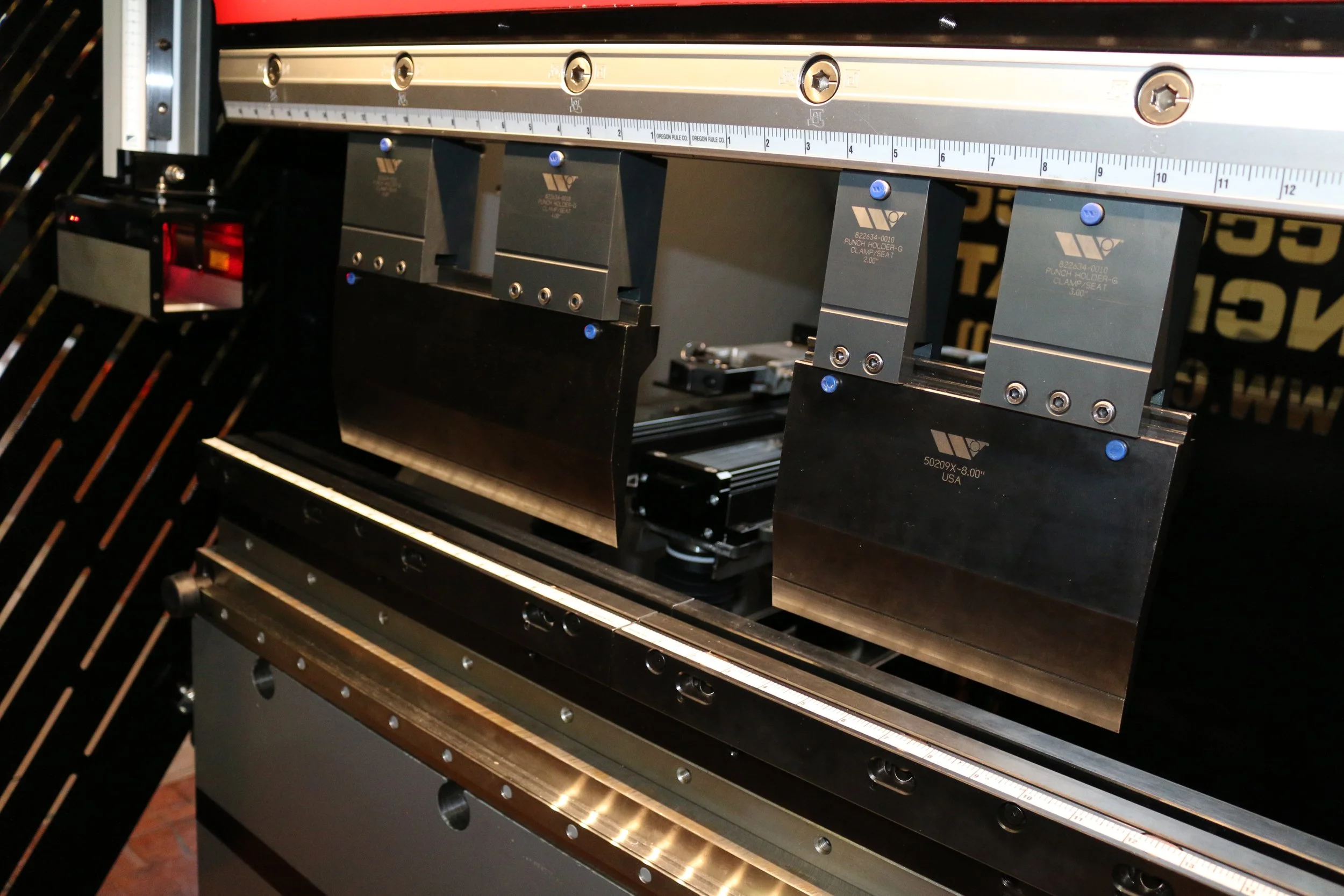

The Goform can be configured to use the three major tooling styles; American, WT/New Standard and European.  Express Clamp systems from Wilson Tool provide fast setup, self-seating, and low maintenance with leak-free mechanical clamps.

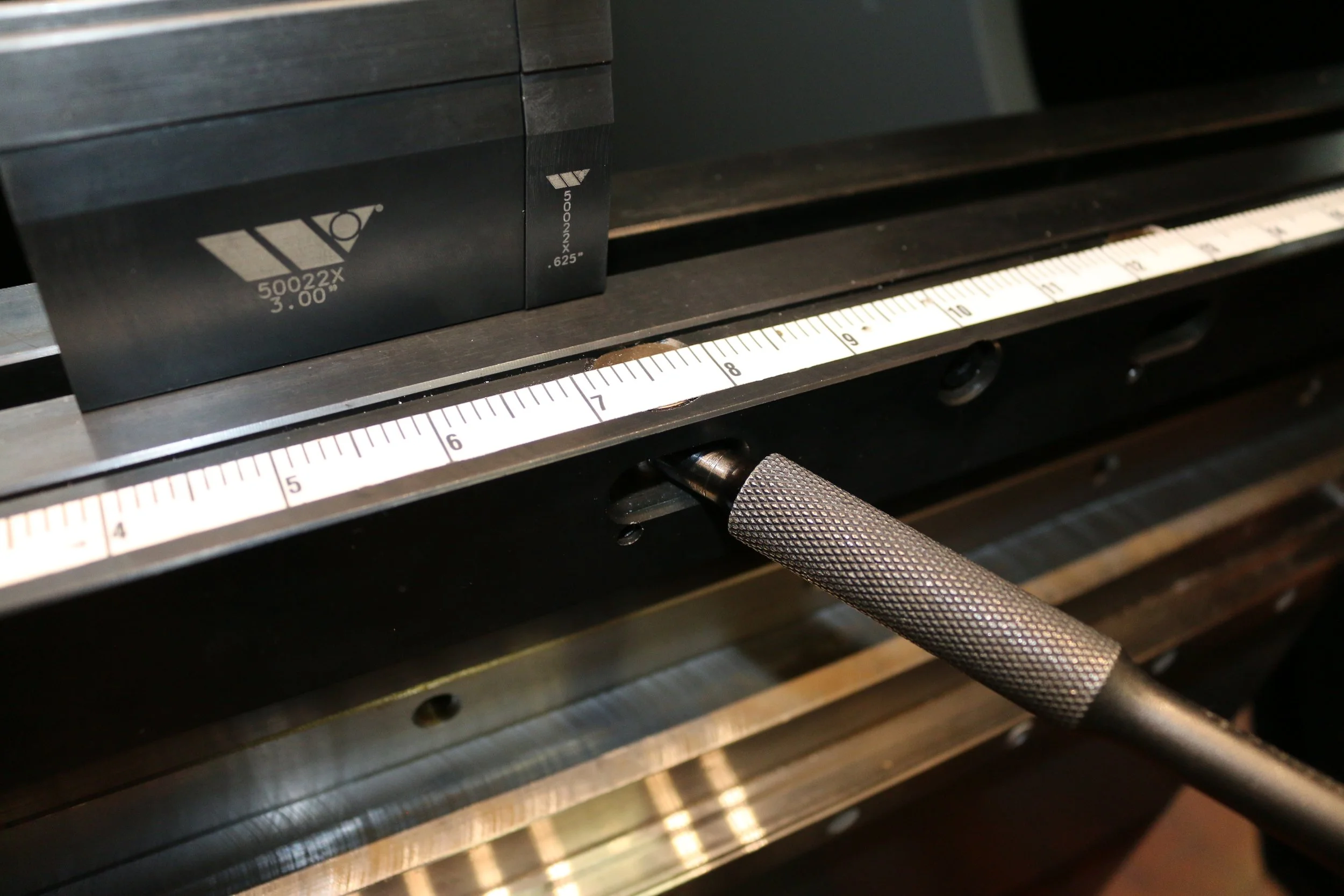

The Express Die Holder uses a full-length clamp bar instead of multiple set screws allowing you to use segmented dies anywhere along the length of the bed.  European1V and 2V die holders can be used directly on the bed, without the need for a filler block.

Versatility
A small machine doesn’t have to have limited stroke and open height. The GoForm is equipped with a 10” stroke and 17” open height for jobs requiring tall tools and adapters.  The backgage is a precision six axis backgage with flip up gage fingers.  A six axis backgage is the ideal solution for both basic and complex part shapes.

Accuracy
High resolution incremental encoders assure exceptional ram repeatability for accurate forming of small parts.  The long ram guides and low friction slide liners produce smooth ram motion with minimal maintenance.
Wedge height adjustments in the die holder provide a simple method to maintain bed-to-ram parallelism to form consistent bend angles in long parts.

Easy To Use

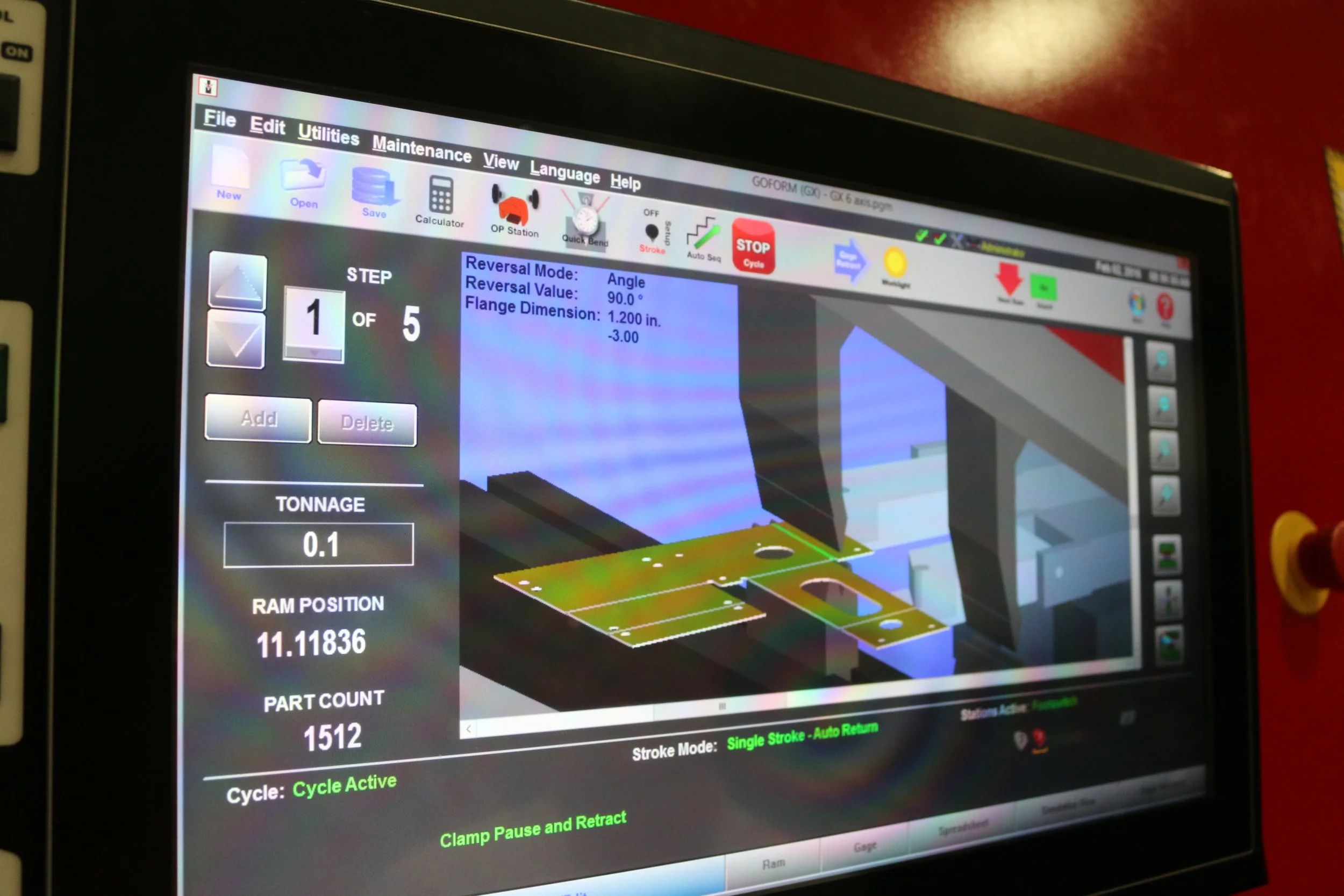

Cincinnati’s PC-based control with a large touchscreen display helps the operator setup jobs quickly with consistent results.  Pre-loaded tool files simplify programming and improve first bend accuracy. A Job Setup screen displays tool names and tool locations and contains a notepad for additional instructions.   Photos, drawings and video files can be attached when visual instructions are needed.  3D views of the bend sequence reduce part handling errors. Programs can be created on the control or offline with Cincinnati’s Bend Simulation Module.

Features

  • Electro-Mechanical Drive System
  • Heavy Duty Roller Screws
  • Adjustable Working Height
  • Accurate & Ergonomic
  • 6-Axis Backgage
  • Long Stroke & Open Height
  • American, European or WT/New Standard Tooling
  • Electric powered
  • 40 Tons x 40”
  • Compact Size & Easy to Move

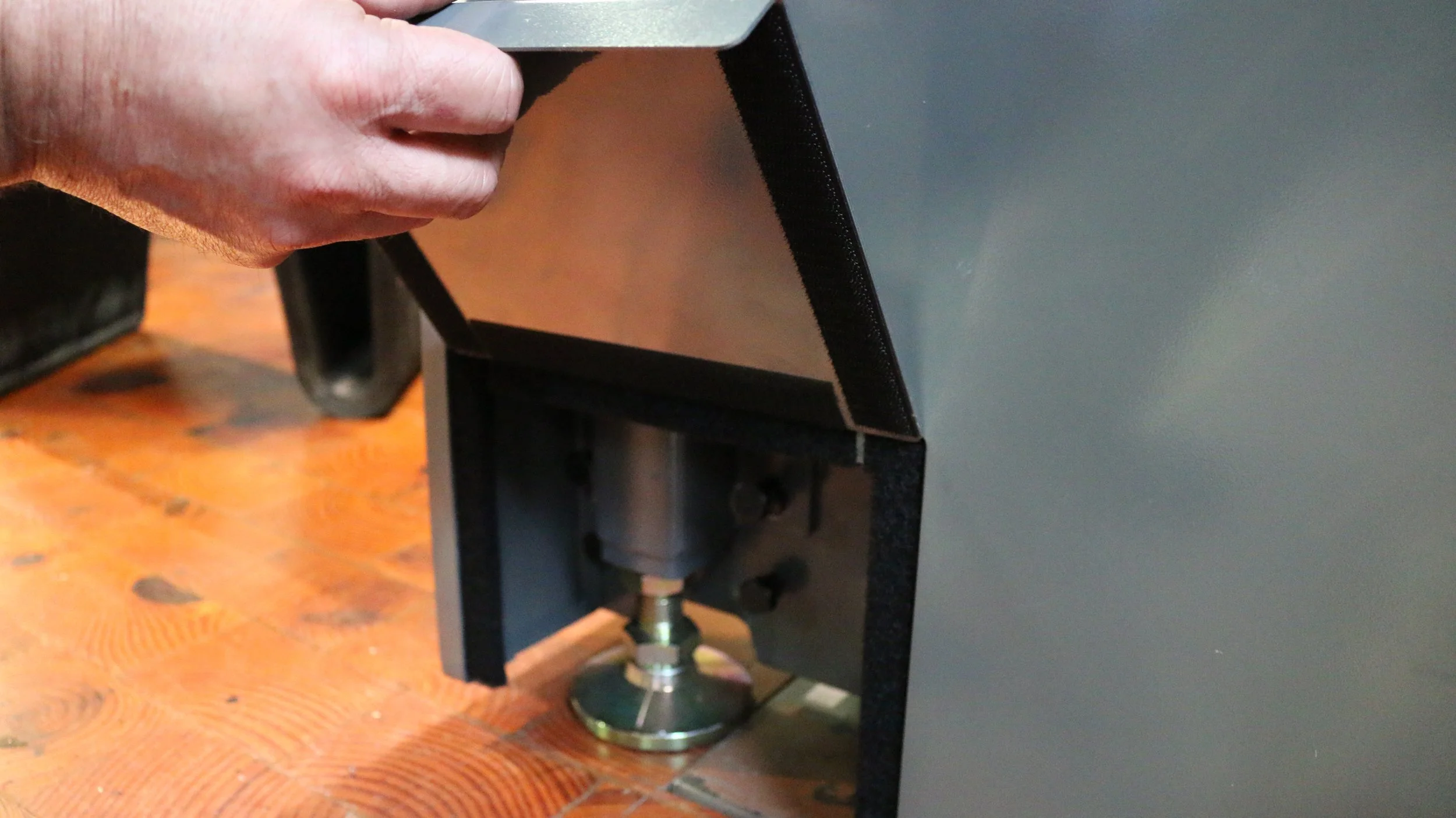

  • No Floor Anchors Required
  • PC Based Touchscreen Control
  • Air & Bottom Bend
  • Quick Clamp System
  • Low Power Usage
  • +/- 0.0002" Ram Repeatability

Purchase Press Brake Tooling

Press Brake tooling can be purchased on our online store. Go to online store

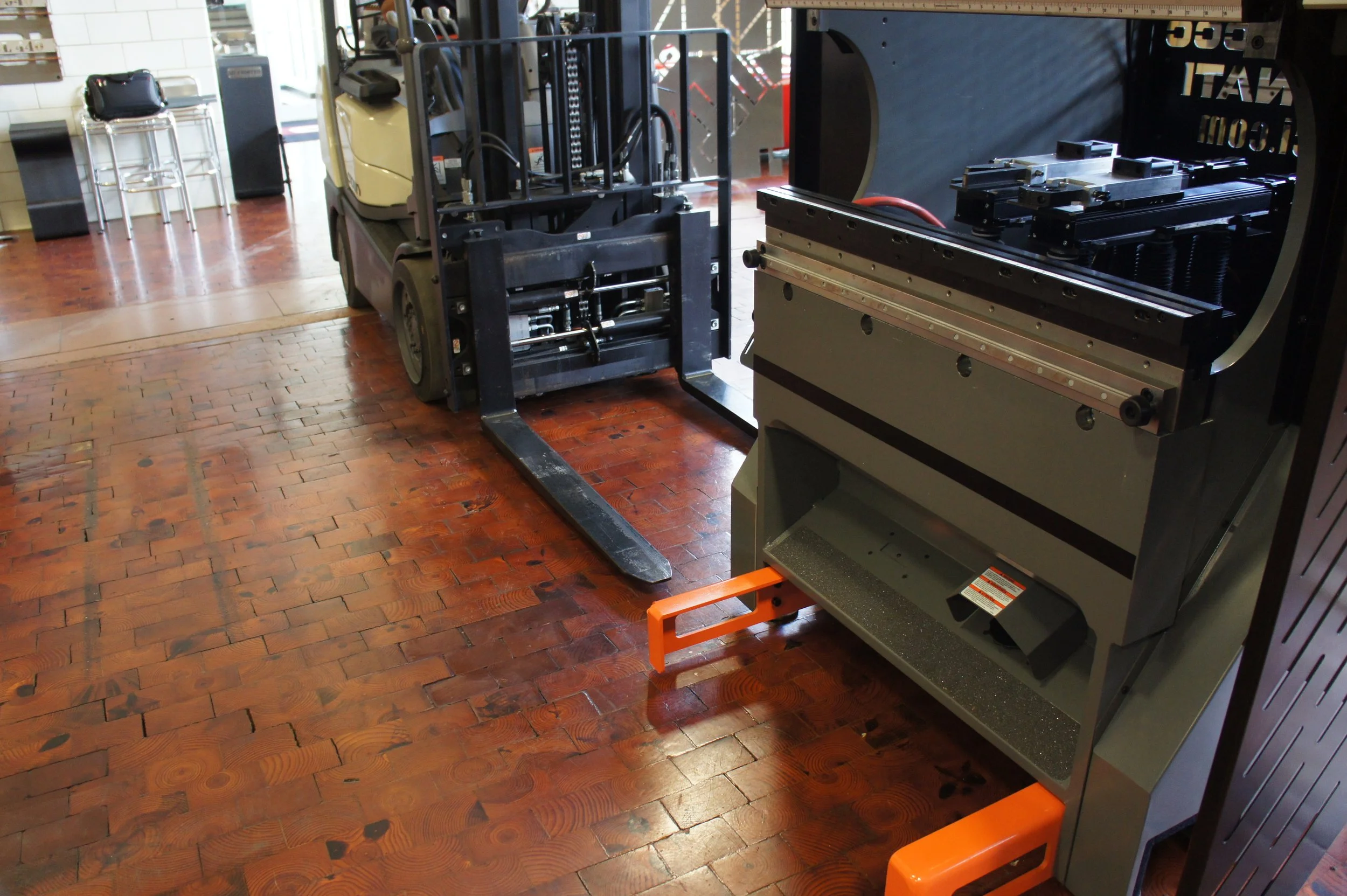

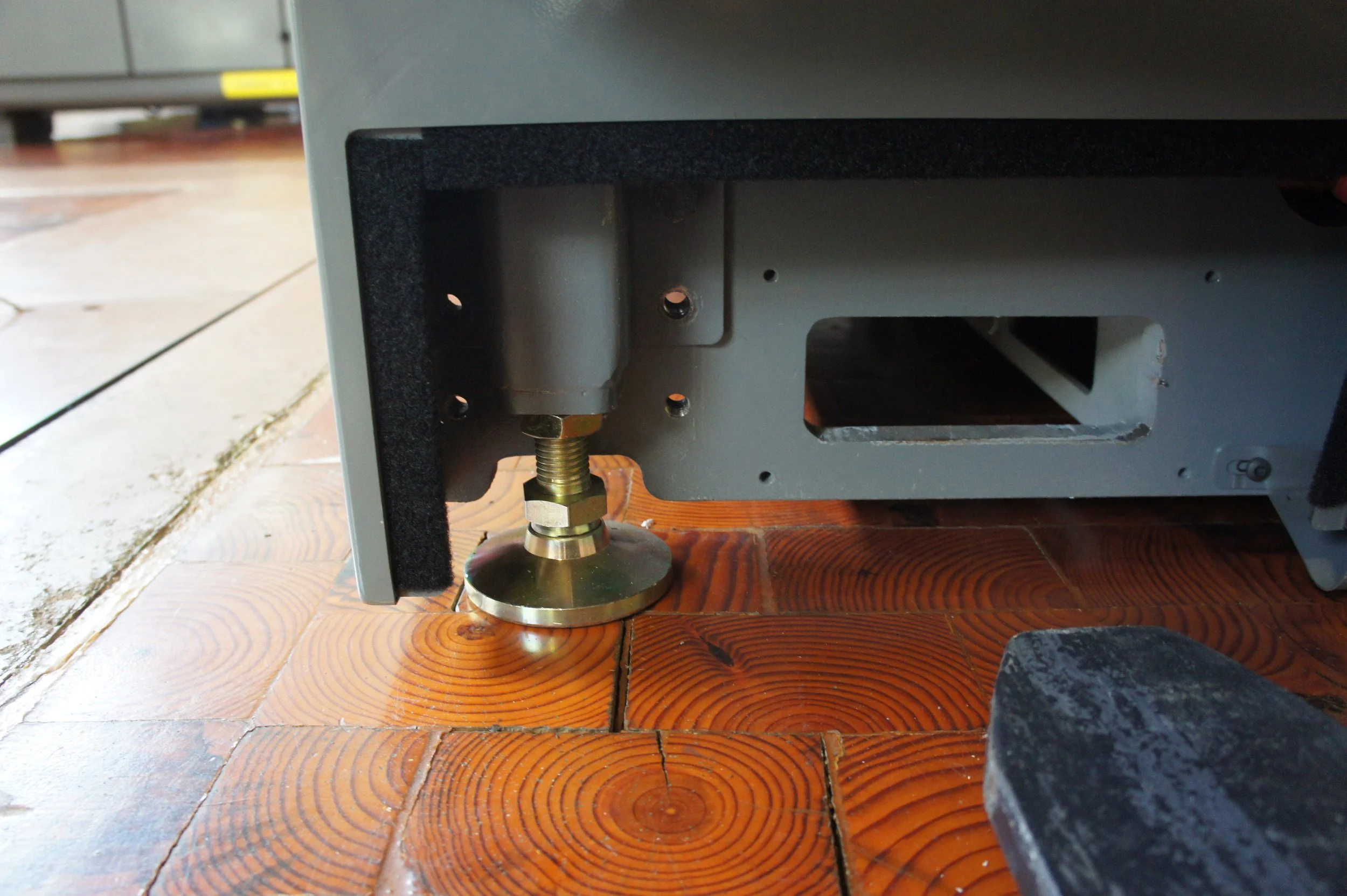

Due to its design, the Goform can easily be moved with a fork truck or overhead crane for flexibility on the shop floor.

Due to its design, the Goform can easily be moved with a fork truck or overhead crane for flexibility on the shop floor.

The heavy-duty, stress-relieved frame was designed for full tonnage with minimal deflection.

The heavy-duty, stress-relieved frame was designed for full tonnage with minimal deflection.

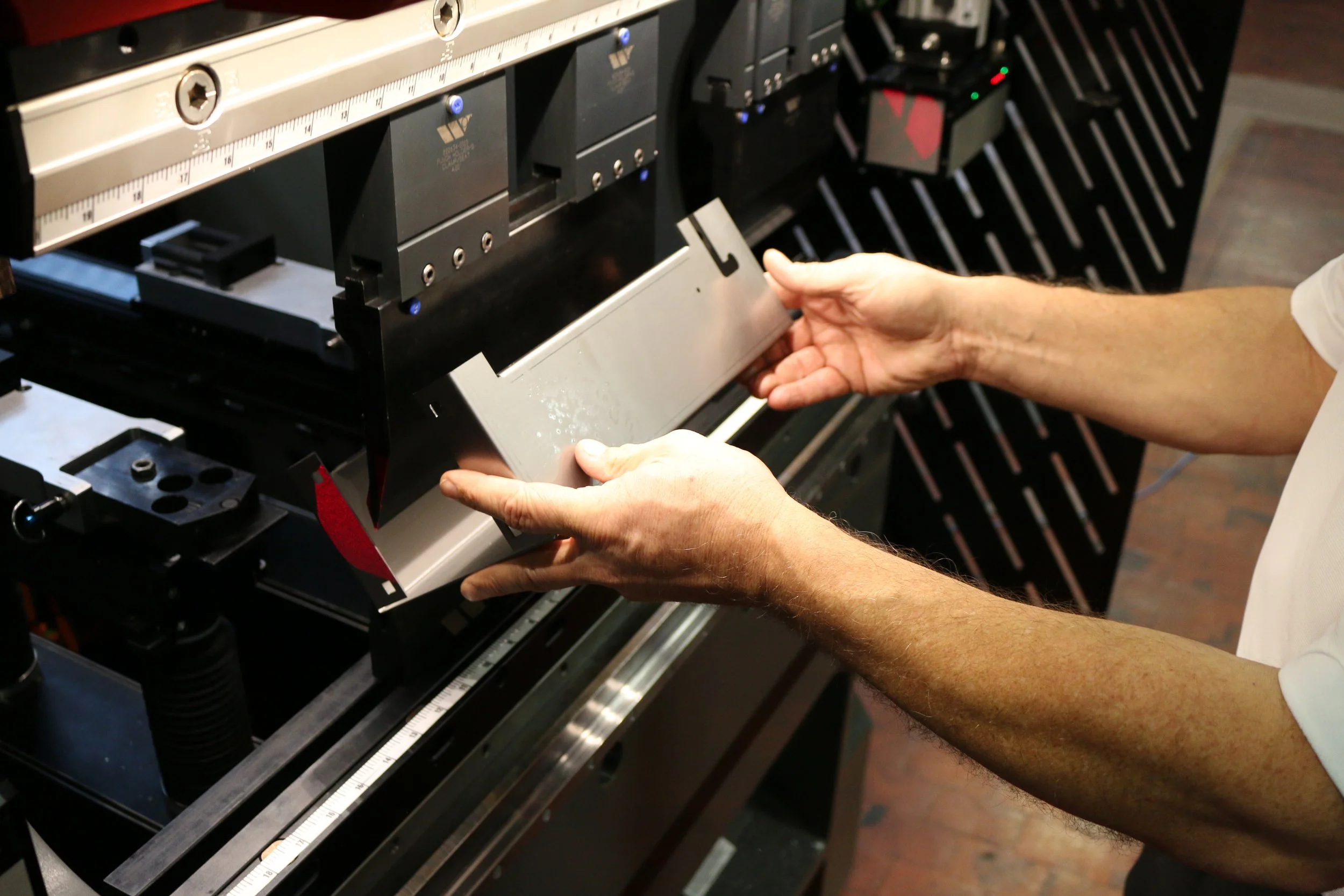

A six axis backgage is the ideal solution for both basic and complex part shapes.

A six axis backgage is the ideal solution for both basic and complex part shapes.

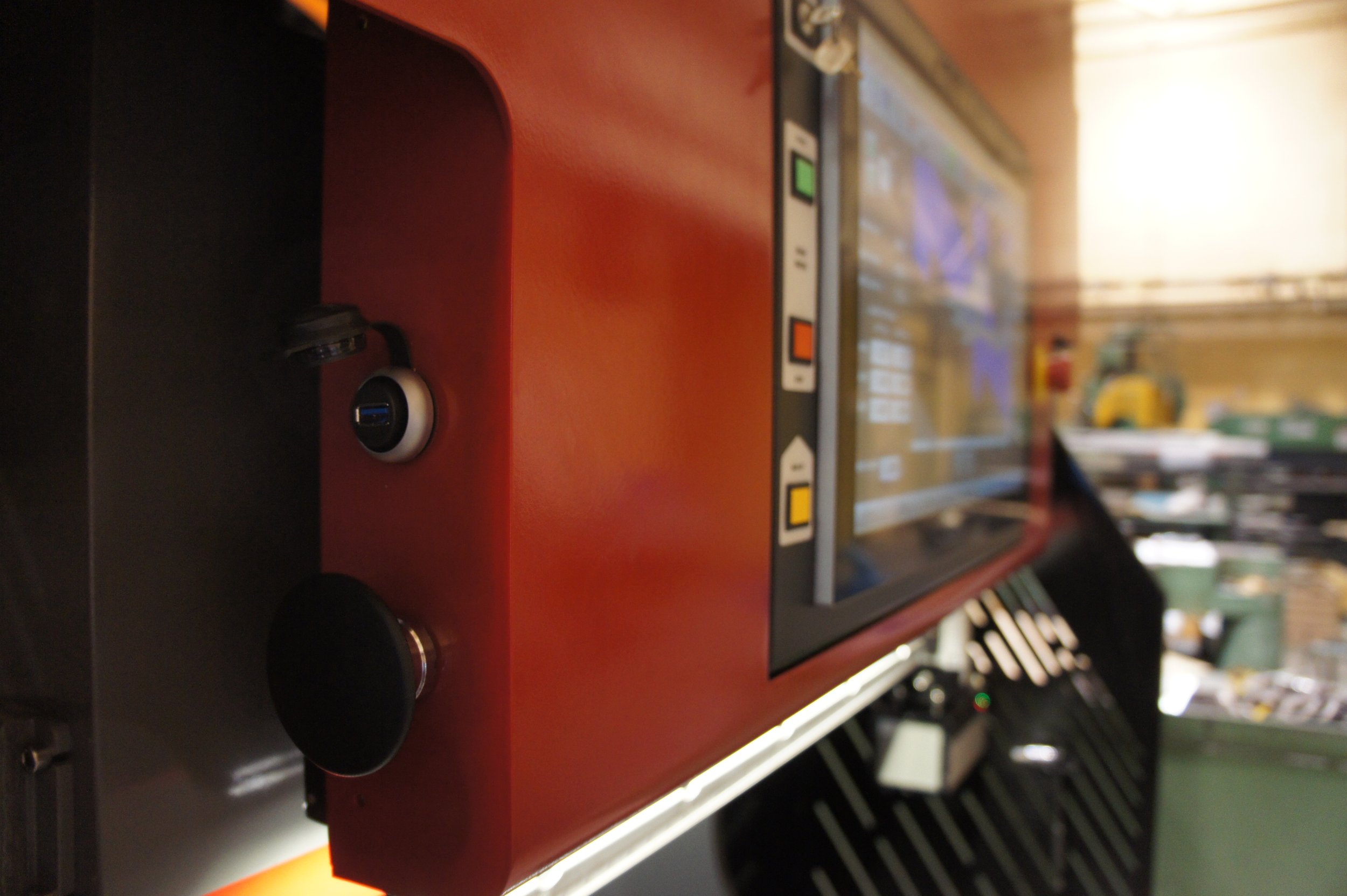

PC-based control with a large touchscreen display helps the operator setup jobs quickly with consistent results

PC-based control with a large touchscreen display helps the operator setup jobs quickly with consistent results



Press Brake Innovation



Dynamic Thickness Compensation

CINCINNATI’s Dynamic Thickness Compensation provides accurate bending capability over a broad variety of materials. Parts bent with "true" air bend dies, generating more than 3% of the machine's capacity and having included angles between 75 and 155 degrees may benefit from CINCINNATI's Dynamic Thickness Compensation.

Learn More


Upgrade Options

If you already have a CI Press Brake and are wanting more productivity features, below are available upgrades.



Press Brake Software

This software is available for the Goform Electric Press Brake. Click on the image to learn more about each software.
