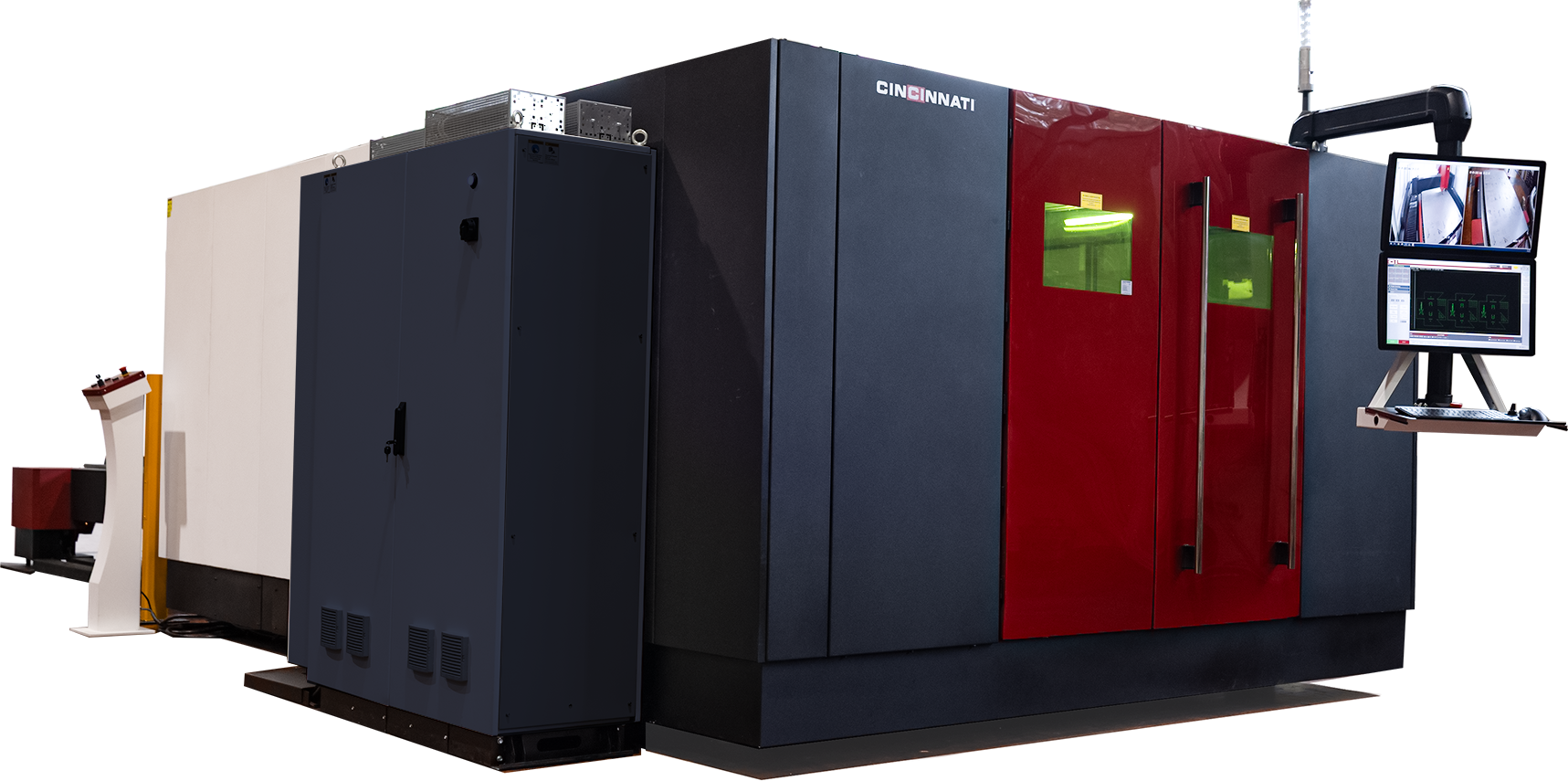

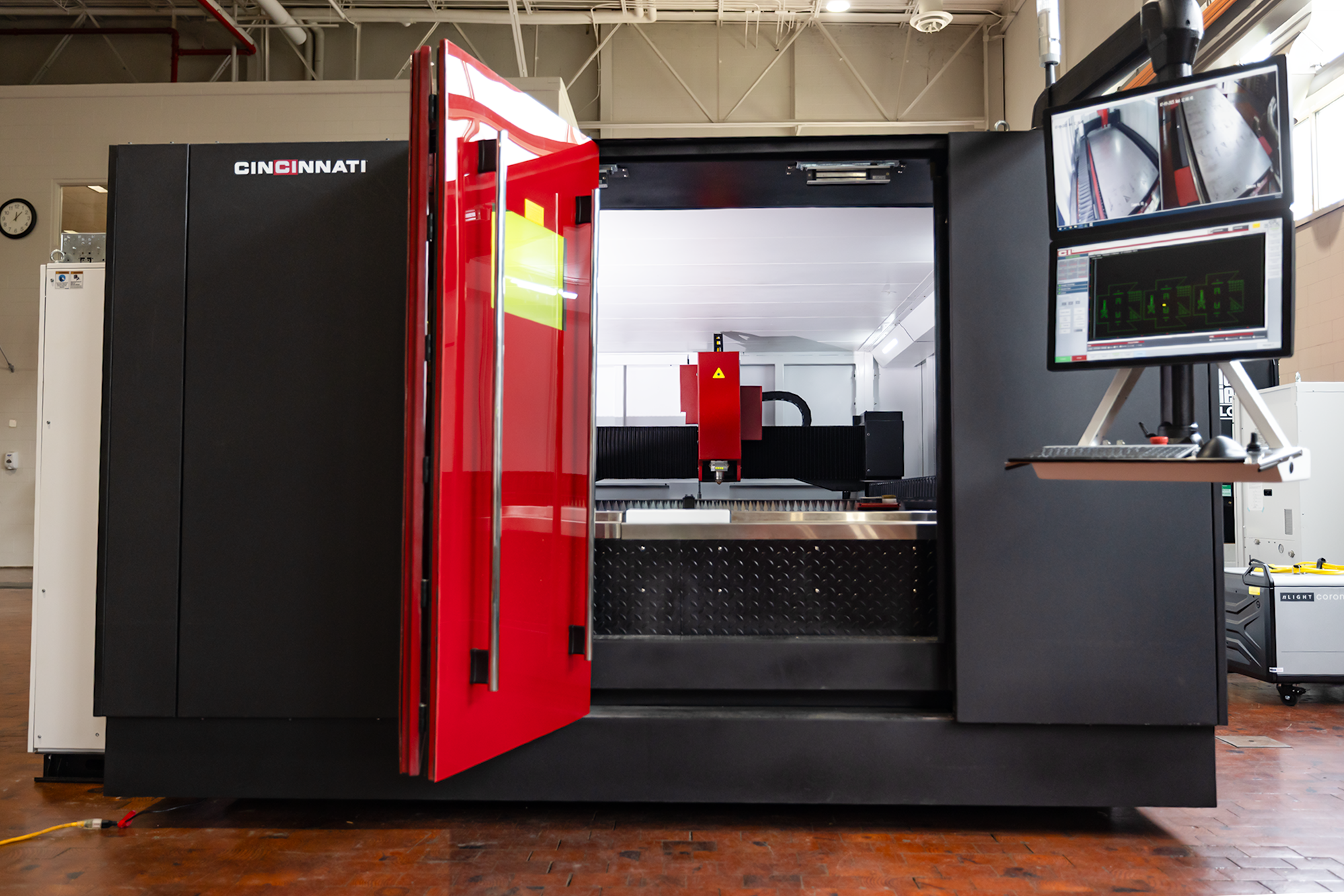

Your Entry Point to Advanced Laser Cutting
Elevate your fabrication capabilities with the CI Fiber, Cincinnati Incorporated's newest entry-level fiber laser. Designed for shops ready to embrace the future of metal cutting, the CI Fiber delivers exceptional performance, unwavering reliability, and the renowned support you expect from Cincinnati Incorporated.
Power and precision, tailored for you
The CI Fiber offers remarkable versatility to match your specific production needs. Choose from two popular table sizes: the agile 3015 (10 ft. x 5 ft.) or the expanded 4020 (13 ft. x 6.5 ft.), perfect for larger sheets and components. .
Power Sources: 5kW and 8kW
Table Sizes: 3015 and 4020
It’s more than just a new laser. It’s a new way to do business.
With its game-changing features, the CI Fiber gives you the power to take control of your production. Bring cutting in-house, reduce lead times, and deliver exceptional quality—all with a machine that's as powerful as it is cost-effective.
Taking control of your production has never been so easy
The CI Fiber is equipped with these key features
-
3015 & 4020 Table Sizes
-
3015 - 3G Acceleration (8,300 ipm), 4020 - 2G Acceleration (5,500 ipm)
-
5kW & 8kW Power Options
-
Hydraulic Dual Pallet Changer
-
Dual Monitor Control HMI
-
Integrated Programming Software
Monitor your laser’s health, anytime from any device with
We support you and the machine.
When you invest in a Cincinnati Incorporated machine, you're not just getting cutting-edge technology; you're gaining a partner. The CI Fiber is backed by Cincinnati Incorporated's industry-leading preferred support and a dedicated team of factory-trained service technicians. From installation to ongoing maintenance and troubleshooting, our experts are committed to ensuring your machine performs at its peak, safeguarding your investment and minimizing any disruptions.
In-house and onsite training options available for operation and maintenance
1-year warranty on parts, labor, and more*
*Terms may apply, see company for details
Remote, phone, and onsite support at every budget level

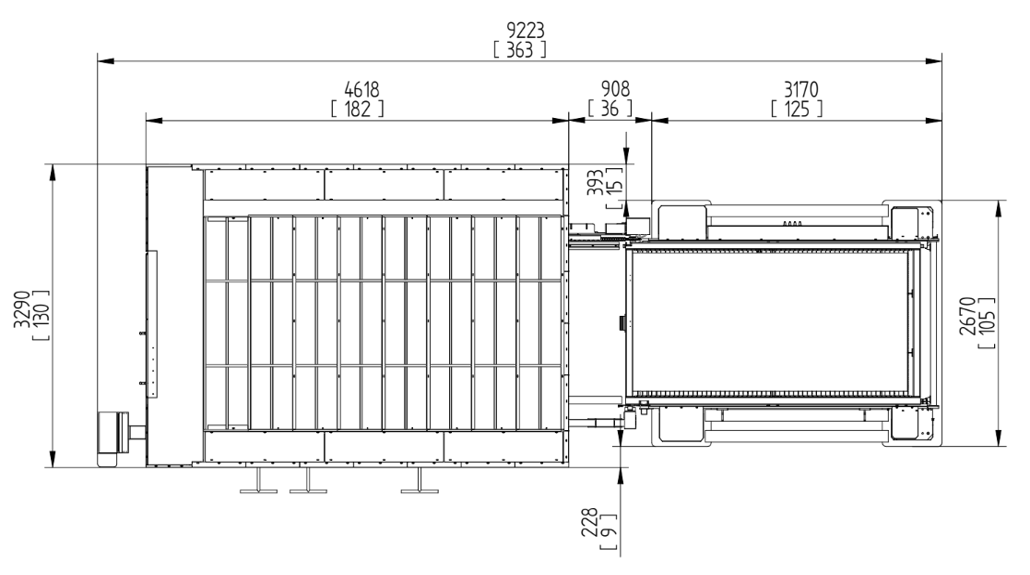

Technical Specifications of the CI Fiber
Available in the following table sizes: 3015 & 4020
Due to a continuous product development program, engineering data and dimensions are subject to change without notice. Foundation plans will be furnished for each installation.
| CI FIBER |
3015 | 4020 |
|---|---|---|
| Working Area: X-Axis | 61" | 82" |
| Working Area: Y-Axis | 122" | 161" |
| Working Area: Z-Axis | 6" | 6" |
| Max Acceleration | 3G | 2G |
| Simultaneous Speed |
8,250 ipm
|
5,500 ipm |
| Positioning Accuracy | ±0.002" | ±0.002" |
| Repeatability | ±0.001" | ±0.001" |
| Work Piece Weight | 1,985 lbs | 3,625 lbs |
