OBS Press Control


OBS Press Control

  • Fast Data Entry via Touchscreen
  • High-Capacity File Storage
  • Programmable forming and return speeds
  • Programmable slide position



OBS Press Control Retrofit

Retrofitting your CINCINNATI OBS Press with a new LCD control is a cost-effective way of improving productivity in your stamping operations, resulting in lower cost per part.

The OBS Control features touchscreen operator interface, self-contained industrial control with an embedded operating system and a compact flash card for storing repeat jobs. A USB port is provided for portable drives.

The control retrofit includes the following:

  • Installation of the new Touchscreen Control by Cincinnati incorporated Service Representatives
  • A limited Planned Maintenance Service Inspection on the OBS Press
  • Off-mounting the electrical control and pendant arm from the OBS press
  • Control demonstration
  • One-year parts and labor warranty

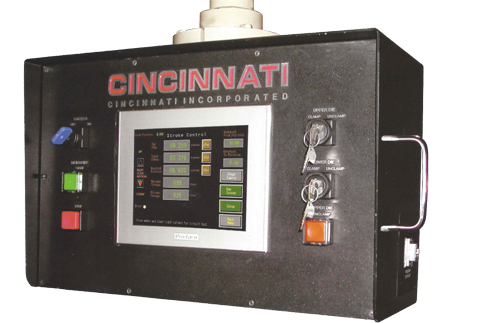

The OBS touchscreen control has a 7.5” color TFT LCD monitor and displays the following features:

  • Tonnage
  • Ram position
  • Three programmable ram speeds
  • Two programmable return speeds
  • Program selectable return on position or reverse on tonnage
  • Mode selector- Off, Die Change, Inch, Single Stroke and Automatic Strokes per minute
  • Ram stroke
  • Batch counter
  • Power on time Main drive on time
  • Fault messages
  • Diagnostic display information

As standard, this retrofit control will support:

  • Quick Die Change (QDC) capability
  • Programmable outputs
  • Automation interface for feeding equipment

A touchscreen control can be retrofitted onto the existing pendent. The installation and demonstration is performed by a CINCINNATI service specialist.
