Your Entry Point to Advanced Laser Cutting
Elevate your fabrication capabilities with the CI Fiber, Cincinnati Incorporated's newest entry-level fiber laser. Designed for shops ready to embrace the future of metal cutting, the CI Fiber delivers exceptional performance, unwavering reliability, and the renowned support you expect from Cincinnati Incorporated.
CI FIBER
Power and precision, tailored for you
The CI Fiber offers remarkable versatility to match your specific production needs. Choose from two popular table sizes: the agile 3015 (10 ft. x 5 ft.) or the expanded 4020 (13 ft. x 6.5 ft.), perfect for larger sheets and components. .
Available in 5kW and 8kW
Make it stand out
It all begins with an idea. Maybe you want to launch a business. Maybe you want to turn a hobby into something more. Or maybe you have a creative project to share with the world. Whatever it is, the way you tell your story online can make all the difference.
Taking control of your production has never been so easy
You CI Fiber is equipped with these key features
-
3015 & 4020 Table Sizes
-
2G Acceleration (8,200 ipm)
-
5kW & 8kW Power Options
-
Hydraulic Dual Pallet Changer
-

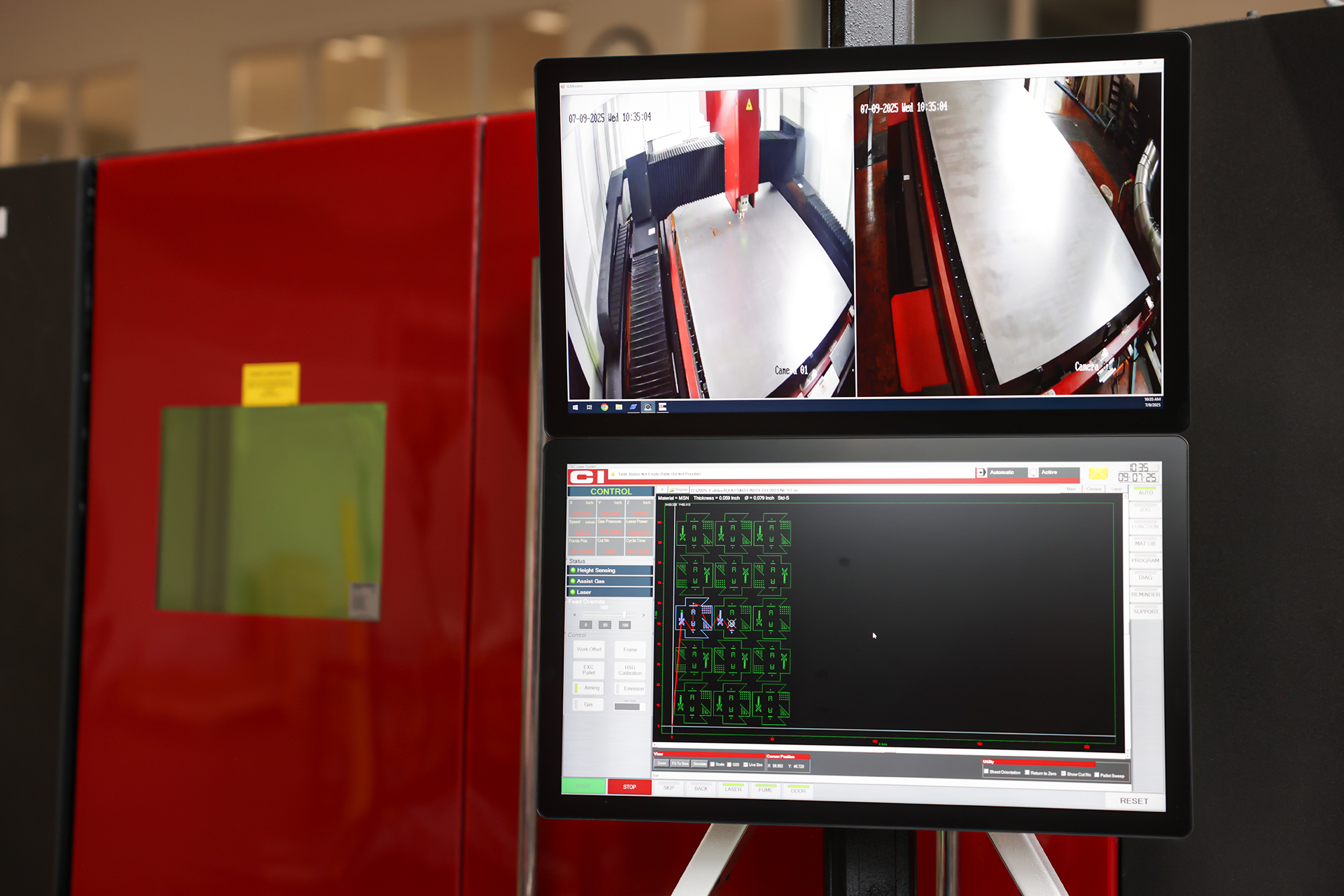

Dual Monitor Control HMI
-
Integrated Programming Software

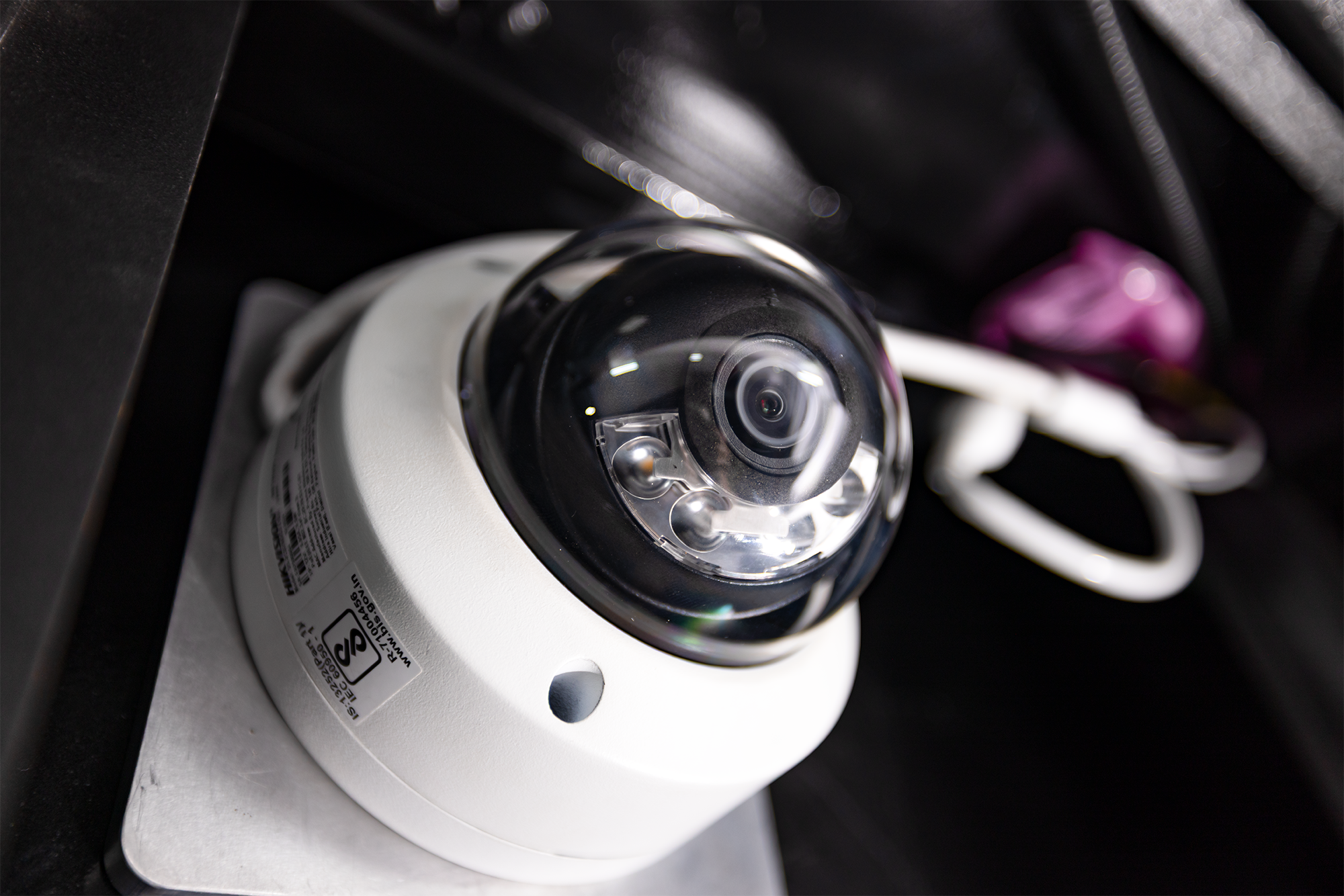

Monitor your laser’s health, anytime from any device with
Specifications
Available in the following table sizes: 3015 & 4020
Due to a continuous product development program, engineering data and dimensions are subject to change without notice. Certified foundation plans will be furnished for each installation.
| Specifications | 3015 | 4020 |
|---|---|---|
| Working Area: X-Axis | 61" | 82" |
| Working Area: Y-Axis | 122" | 161" |
| Working Area: Z-Axis | 6" | 6" |
| Max Acceleration | 3G | 2G |
| Simultaneous Speed | 8,250 ipm | 5,500 ipm |
| Positioning Accuracy | ±0.002" | ±0.002" |
| Repeatability | ±0.001" | ±0.001" |
| Work Piece Weight | 1,985 lbs | 3,625 lbs |
