CL-900 Series Fiber Laser Cutting System Specifications

CL-900 Series Fiber Laser Cutting System Specifications

Due to a continuing product development program, engineering data and dimensions are subject to change without notice. Certified foundation plans will be furnished for each installation.

Printer Friendly Specifications

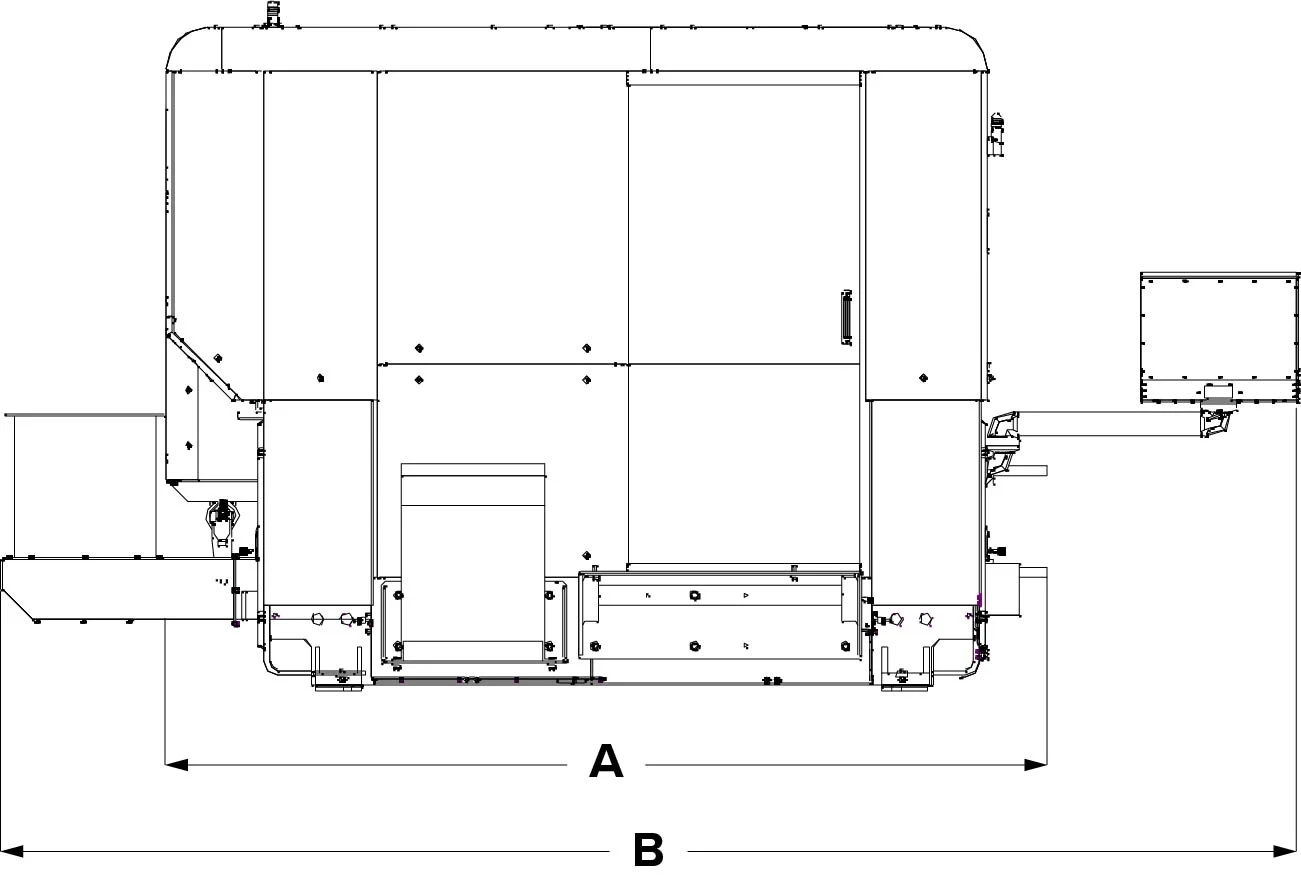

CL-900 Series Fiber Laser System Outline


Specification Table

(2,000W, 4,000W, 6,000W)
Pallet
Dimensions
60" x 120"
5' x 10'
2M x 4M 96" x 240"
8' x 20'
1,524 mm x 3,048 mm 2,438 mm x 6,096 mm
A 125" 144.1" 160.5"
3,175 mm 3,660 mm 4,077 mm
B 183" 202" 192"
4,648 mm 5,131 mm 4,877 mm
C 95.8" 95.8" 99.1"
2,433 mm 2,433 mm 2,517 mm
D 268" 310.5" 414.2"
6,807 mm 7,887 mm 10,512 mm
E 399" 478.4" 680.1"
10,135 mm 12,151 mm 17,275 mm
F 39.6" 39.6" 40.1"
1,006 mm 1,006 mm 1,019 mm
Weight 32,000 lbs 37,400 lbs 59,000 lbs
(14,515 kg) (16,965 kg) (26,762 kg)
