CL-400 Series CO2 Laser Cutting System Specifications

CL-400 Series CO2 Laser Cutting System Specifications

Due to a continuing product development program, engineering data and dimensions are subject to change without notice. Certified foundation plans will be furnished for each installation.

Printer Friendly Specifications




Specification Table

(4,000W)
Pallet
Dimensions
60" x 120"
5' x 10'
2M x 4M
1,524 mm x 3,048 mm

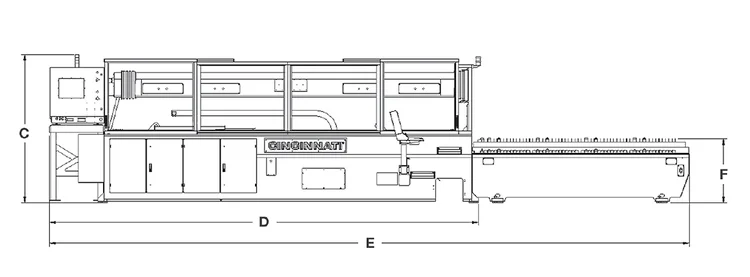

A 125.4" 144.1"
3,185 mm 3,660 mm
B 183" 202"
4,648 mm 5,131 mm
C 90.3" 90.3"
2,294 mm 2,294 mm
D 265" 307.1"
6,731 mm 7,800 mm
E 395" 475.9"
10,033 mm 12,088 mm
F 39.6" 39.6"
1,006 mm 1,006 mm
Weight 35,250 lbs 42,200 lbs
(16,000 kg) (19,142 kg)
